EMMA Electric Triple Monitor Arm
Availability: In stock
As low as $1,320.00
Price as configured: $1,320.00
- Supports up to 150 lbs of total rated lift capacity
- ConstantFocus™ wrap-around design eliminates focus lag and eye strain
- Twelve possible combinations of monitors and/or laptop mounts with additional hardware purchase
- Straight up-down vertical movement eliminates the arcing motion inherent to mechanical monitor arms
- Gesture-style control paddle with Bluetooth sync and smartphone App
- 5-Year, Made-in-America warranty
Need Bulk Order Pricing?
Contact Us Here!
The ergonomic monitor arm has been around for over 40 years and is adequate for most single and dual monitor applications where the displays are below a certain weight and size. They’re an especially essential device for eliminating neck strain for standing desk users, who need to adjust the height of their displays every time they switch from sitting to standing. But when it comes to moving a very large monitor such as some of today’s very wide and heavy panoramic curved displays—or more than two displays together—they reach the limits of their mechanical counterbalance designs.
That’s why iMovR created the new EMMA electric monitor arm, to handle the size, weight, and a number of displays more commonly being used today.
The most capable monitor arm ever created
With the ability to lift up to six displays with a brawny 150 lbs of lift capacity, the EMMA stands in a class of its own. With twelve possible combinations of monitors and/or laptop mounts, the straight up-and-down motion of the EMMA eliminates the “arcing motion” that mechanical arms suffer from, which makes it difficult to keep the displays centered on the workstation in both sitting and standing postures.
The only monitor arm featuring ConstantFocus™
There are multi-display monitor arm systems out there with a slightly bent crossbar that can bring the outer displays a little closer to the user, but on such a shallow radius that your eyes are still forced to stop and refocus to see the outer zones clearly.
Curved computer displays have the same limitation; even the most radically curved screens made today (1500R) would require the user to stand five feet away from the monitor to have equal focal depth at all points. That’s great for watching movies from the sofa, but a typical computer user is sitting only 20” - 25” from their screens.

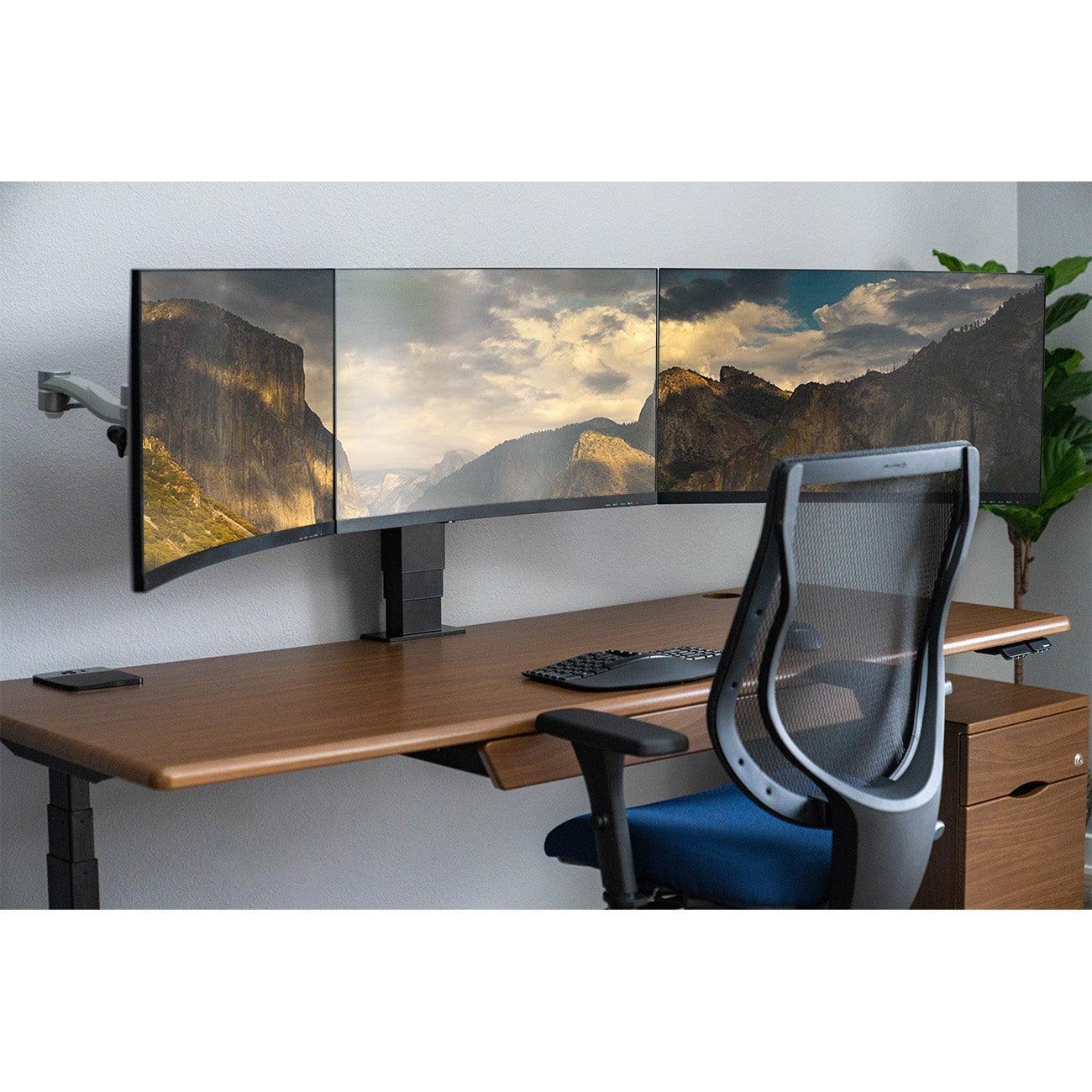

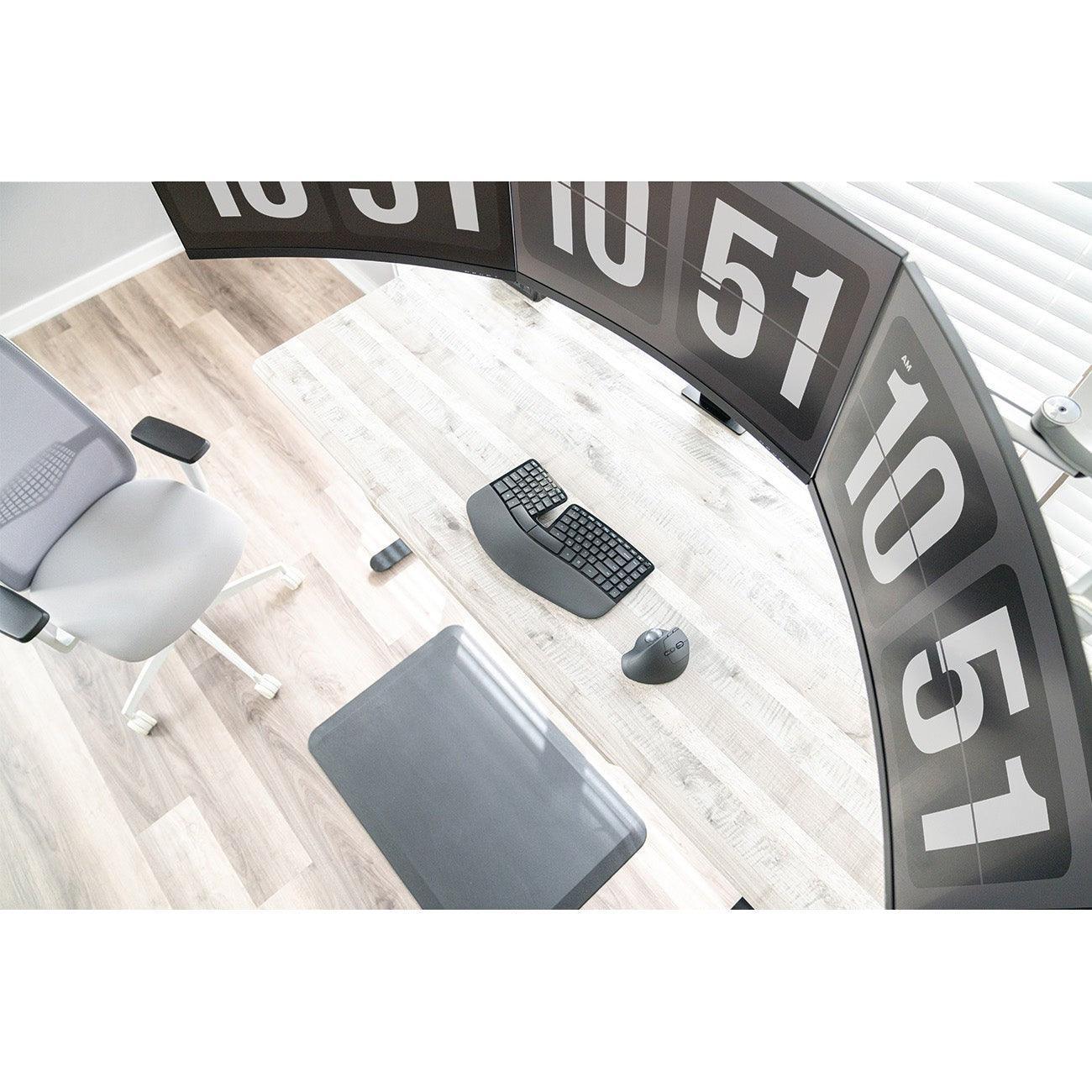

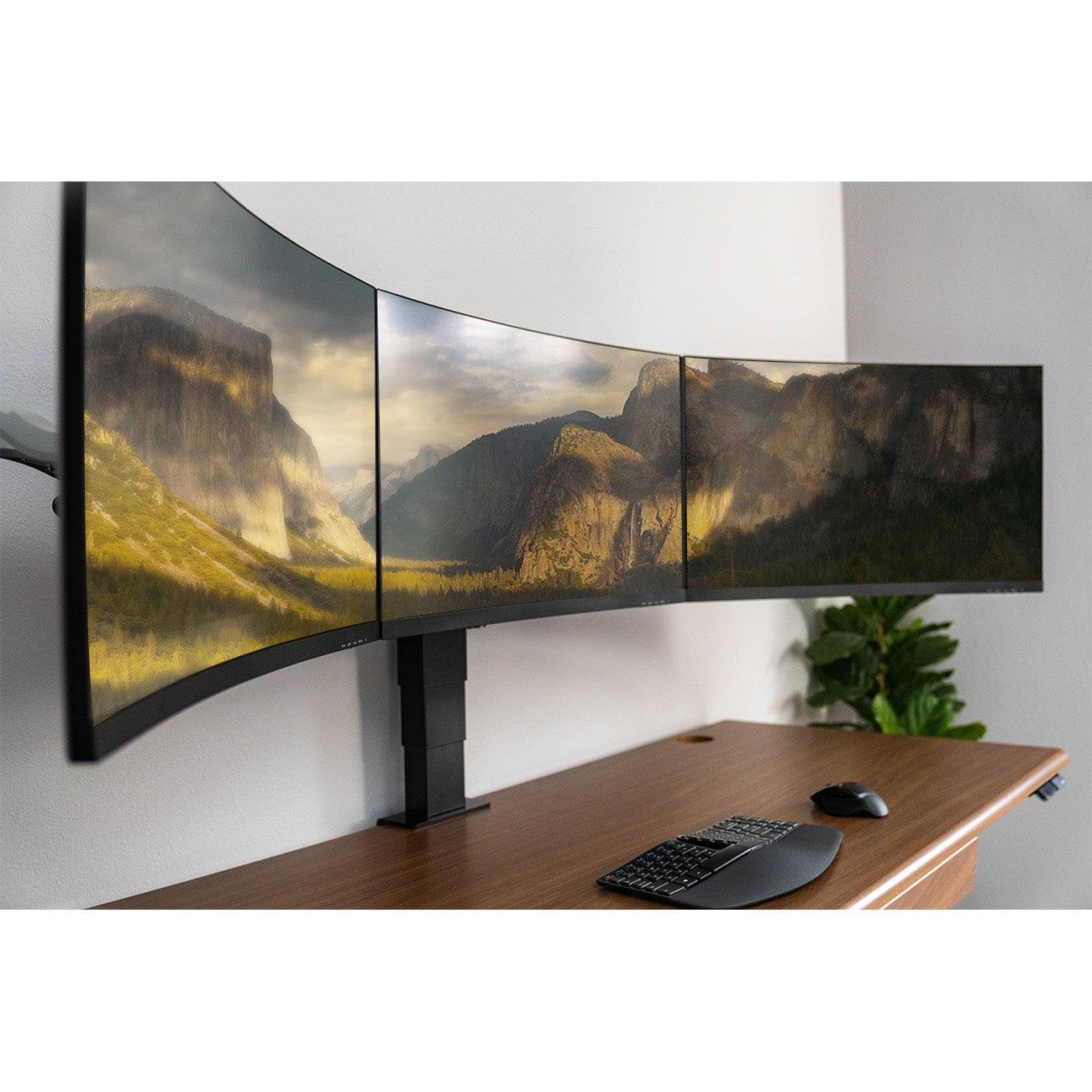

With its breakthrough ConstantFocus™ wrap-around design, the EMMA keeps all of your displays at the same focal depth. This reduces strain on your eyes’ ciliary muscles and speeds your brain’s processing of visual information. For stock traders, dispatchers, gamers and other users who need to have the fastest hand-eye-brain coordination, no other single monitor arm can deliver the goods.
12 possible configurations

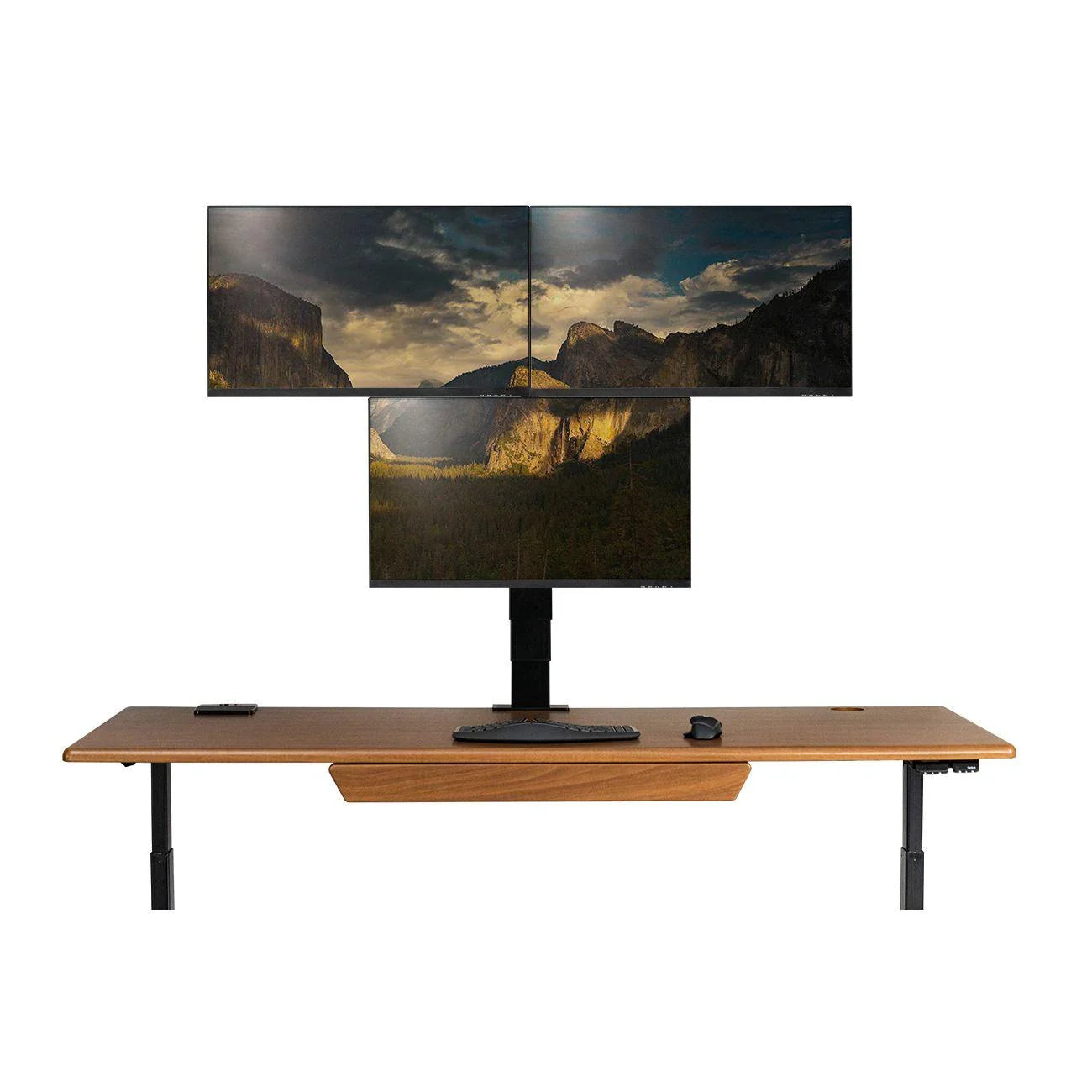

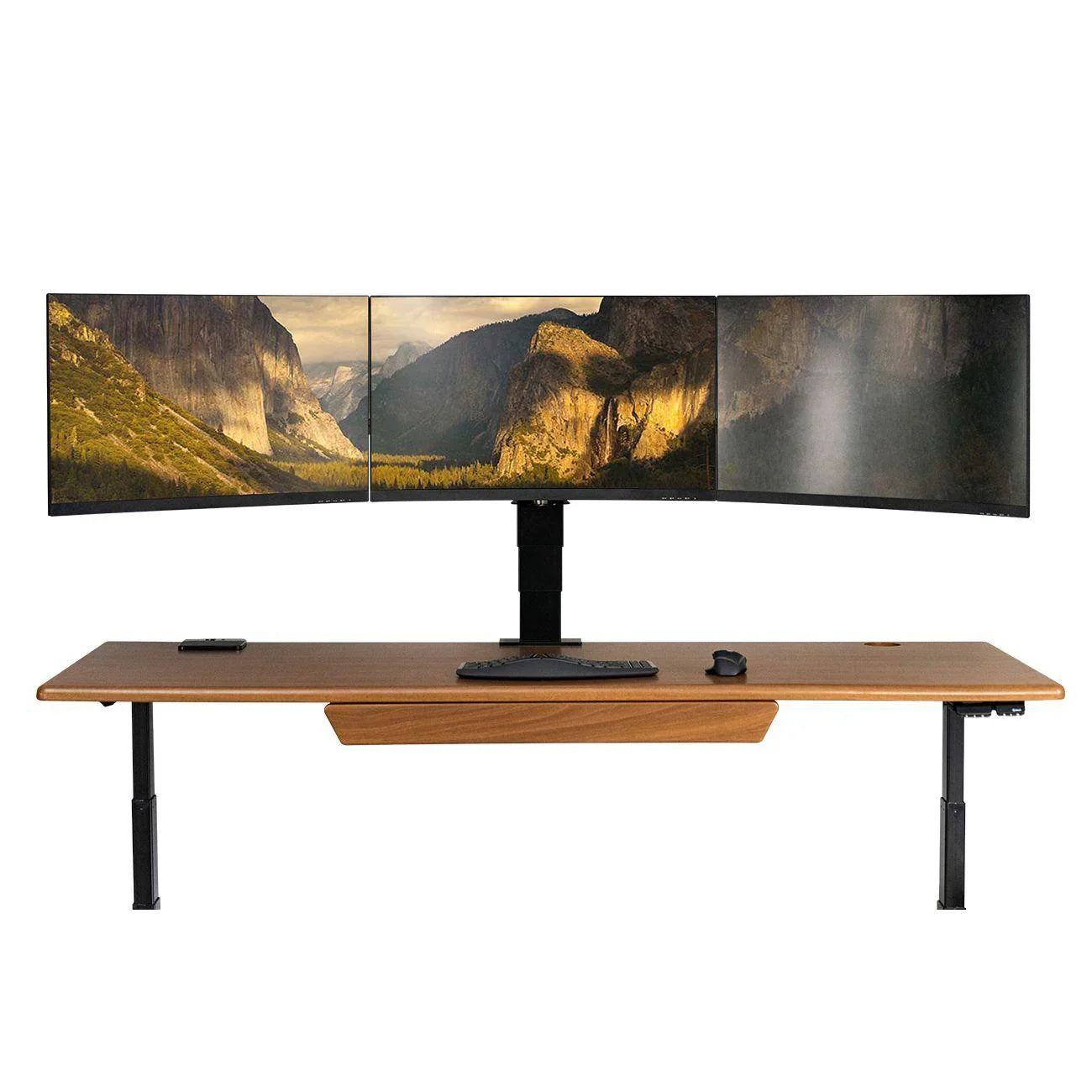

Each of the EMMA rows can handle up to three displays and/or laptop mounts. You can configure the EMMA for all 12 possible permutations of up to six displays, such as 2-over-2 or 1-over-3. Or even for just one gargantuan display or two very wide panoramic displays mounted 1-over-1. And everything else in between. Best of all, you won’t have to be a rocket technician to install the EMMA. We provide clear documentation and video installation guides for all 12 configurations so there’s no guesswork.
Straight vertical pathway with no “arcing”
While the EMMA can of course be used on any desk, it was created especially for standing desk users who want to keep their display(s) centered at all times, regardless of their posture and position. Because our lower spines stretch out when we stand, to avoid neck strain we need to raise our monitors relative to our keyboard height each time we change postures. Virtually all other mechanical monitor mounts have an inherent arcing motion when raising or lowering the displays (with the one exception of iMovR’s Trace Arm). That arcing motion results in the center point of our displays annoyingly shifting to the left or right compared to their position when we’re seated.
EMMA moves your monitors straight up and down, with no change in the centerpoint or focal depth of your monitors.
Digital controller with Bluetooth
The EMMA is controlled with the same up/down gesture controller as is used on iMovR’s Lander and Lander Lite standing desks. And that means it has Bluetooth built right in.
The existing Linak App allows for pre-programming "sit" and "stand" heights that the EMMA will automatically move to with just a double-tap on the paddle. A future update to iMovR's Ergodynamics App will be released later in 2022 for controlling both the desk, monitor arm and other workstation accessories with a single tap on the phone for "sit" or "stand", and other innovative features.
The EMMA linear actuator column is equipped with a PIEZO™ sensor for accurate and reliable anti-collision. You can also program the controller to set a minimum and maximum height limit to prevent accidental collision with the desktop or the ceiling (an important safety feature if small children are around).
American design, American made
Unlike almost every monitor arm sold today, the EMMA is proudly engineered and manufactured in the USA. It’s backed by an industry-leading warranty and a 100-day satisfaction guarantee, like all iMovR products.
High-precision, robotically manufactured Linak DL12
Maximum Lift Capacity
120 lbs when using the standard VESA mounts (up to 6 devices x 20 lbs per device).

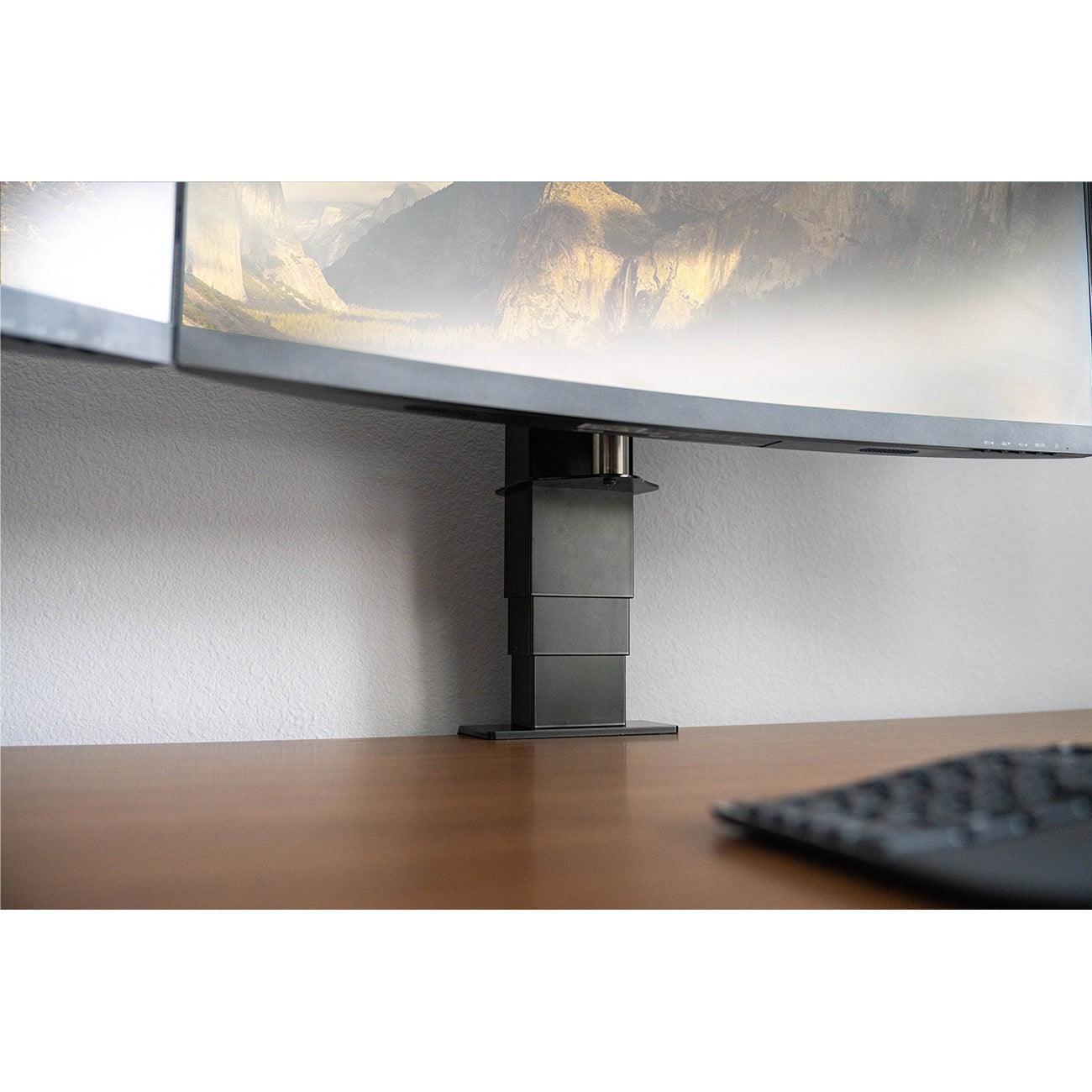

The dual-stage column is governed to a maximum 16” stroke for superior stability and side-loading safety. There is also vertical adjustment available on both the lower and upper beam to accommodate a wide range of monitor sizes and make it possible to eliminate any gap between the two rows of displays (see diagram)
1.5 inches per second
PIEZO™ integrated sensor
Height Control Handset

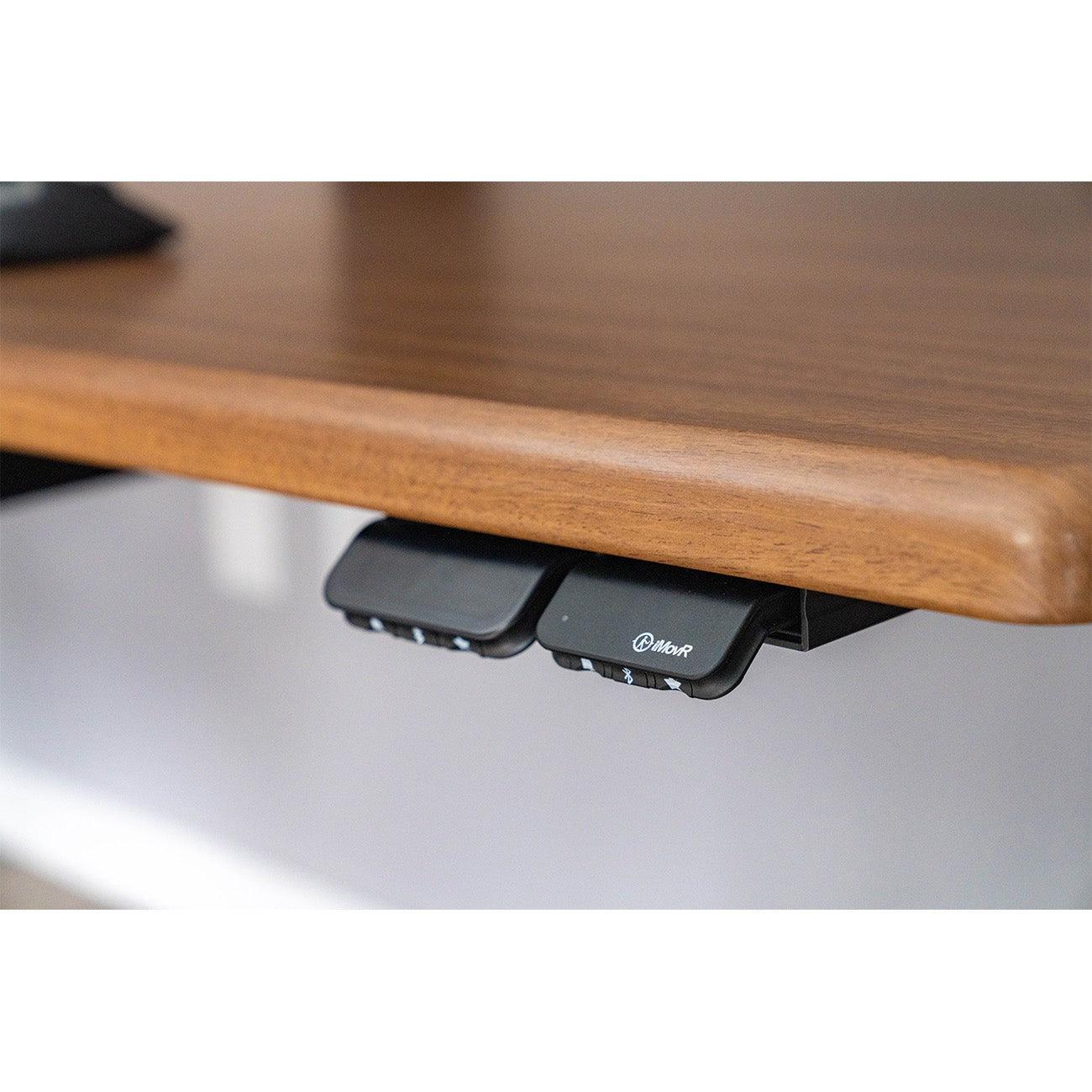

“Gesture style” up/down paddles with built-in Bluetooth for smartphone control. Matches style with all Lander and Lander Lite desks.
|Power Consumption||Standby power consumption: 0.1W|
Power consumption under full load: 850W (7 Amps)
Complies with EN 60335-1 and UL 962 with CBD6S
Standard color is black. White and Silver columns are available for bulk orders only at this time.
Max Display Width
For each row of displays: there is no max-width limitation for only one screen. For dual displays the max width is 80” per screen. For three displays the max width is 40” per screen.
Max Display Weight
Each VESA mount can support a device of up to 20 lbs. This weight limit can be increased to 25 lbs per monitor on the beams, and 75 lbs on the center column, by installing the optional Heavy Duty Support Collar.
Maximum Extension Reach
Along the beam in the same plane as the back edge of the desk: 42”
Minimum Retraction Depth
7.8” at the center-mounted display
VESA Mounting Plate
Supports 100mm and 75mm. Use adapter for larger VESA patterns.
+/- 22.5°. Note that the size of the monitor will determine the tilt limits on the center-mounted displays due to interference with the lifting column.
This EMMA Electric Monitor Arm comes with our Made-in-the-USA Warranty:
See full warranty terms here for details.
This product ships by FedEx Ground from Petaluma, CA. Shipping is included in the price for the Lower 48 States. Lightweight items may alternatively ship by USPS 1st Class Mail to certain geographies. Please allow 7-12 business days for the item to arrive.
See our Shipping and Delivery Upgrade Options for complete details about our shipping service levels, methods of shipment, and options for bulk shipments and international destinations.
|Parcel Dimensions (L × W × H) inches|
One Row with Three Monitors | 32 × 17 × 16
One Row with Single Monitor, One Row with Two Monitors | 32 × 15.625 × 24.625
|Parcel Weight (lbs)|
One Row with Three Monitors | 43.6
One Row with Single Monitor, One Row with Two Monitors | 46.6
