Detailed Description

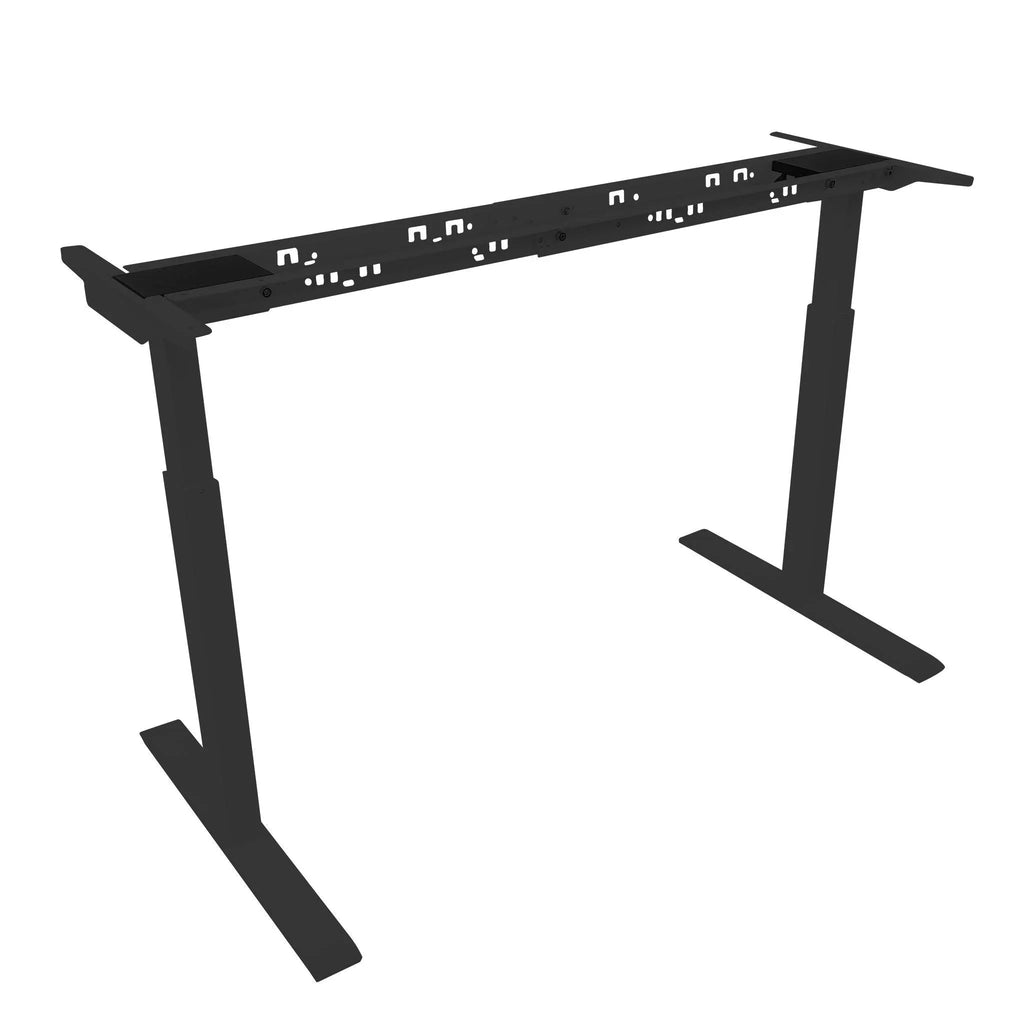

The iMovR Studio 470 DIY base is ideal for building a compact, budget-friendly standing desk for a studio apartment, dorm room, or hot desk area for laptop users. See guidance below for suitable desktop sizes. This base is ideal for average height users. For below or above average height users, or for using with heavy, extra-wide or extra-deep desktops we recommend using one of our heavier-duty bases.
Designed by one of the world's leading linear actuator engineering teams based in Scandinavia, the Studio 470 is built by the same robots that manufacture our Freedom Base. The Studio 470 features precision tolerances like you will not find on Asian-import bases. Despite being extraordinarily light and simple, the Studio 470 has earned the rigorous ANSI/BIFMA certification rating for desktop sizes of up to 31.5″ × 63″.
Featuring smooth dual-motor performance, low standby power consumption, and built-in wire management, the Studio 470 delivers an unmatched value all in one compact, rugged 47 lb. box. See SPECS tab for transit speed, height range, load capacity, and other detailed specifications.
Guidance on suitable desktop sizes for this base:
The innovative Studio 470 base is lighter in weight and lighter on the wallet than other bases that are designed to telescope out to also support larger desktops. This base is designed to save a lot of weight, and therefore cost of metal and shipping.
While the width adjustment range is 31.5″ to 55″, and the base has received ANSI/BIFMA certification from an independent testing laboratory for desktops up to 31.5″ × 63″, the optimal stability will be achieved with the desktops ranging from 24″ to 30″ in depth, and widths not exceeding 48″.
Maximum stability will be achieved with the crossbars set to support no more than a 48″ top. However, wider tops can also be used if there is simply an overhang on the left and right sides. Other stability factors include the height of the user (the lower the desk height the more stable it will be) and the thickness and rigidity of the desktop material. For desktops with heavy mass we recommend using one of our more robust base frame models. Still have questions? Ping us in live chat for expert advice.
Dimensions, Drawings & Specifications
Product Specs
- Dual motor with transit speed of 1.25″ per second
- Basic up/down handset
- Crossbars feature built-in wire management
- Load capacity 176 lbs.
- ANSI / BIFMA X5.5 2014 certified
- UL 962 certified
- TAA-compliant
- Height Range Adjustment 26.85″–45.35″
- Width Range Adjustment 31.5″–55″
- Table Top Accommodation 32″–60″ W & 24″ & 30″ D
Certifications
The complete stand/base is developed to harmonize with standard requirements: EN 527-2:2016 Office furniture – Work tables – Part 2: Safety, strength and durability requirements
EN 1730 Furniture – Tables – Test methods for the determination of stability, strength and durability.
ANSI/BIFMA X5.5-2014 - Desk products - applicable paragraphs
The paint/surface of the stand is approved according to standard: EN 12720:2009+A1:2013 Furniture – Assessment of surface resistance to cold liquids EN 15186:2012 Furniture – Assessment of the surface resistance to scratching /p>
The electronics are certified according to: RoHs, Reach, EMC directive, UL962, CHINA RoHS
Product Diagram
Docs & Videos
Warranty & Returns
Warranty
- 2 years on all electronics
- 5 years on all mechanical components
- 10 years steel components
Returns and Exchanges
We have a 100-day, 100% Satisfaction Guarantee. If you receive your iMovR product and decide it is not what you are looking for, please send it back and we will give you a full refund minus a 20% restocking fee. The customer is responsible for return shipping and handling costs, and the original shipping and handling costs are nonrefundable. The product must be in its original packaging, and in sellable condition. Simply email us at customercare@imovr.com or call (888) 208-6770 for a Return Merchandise Authorization (RMA) number.
Shipping
Shipping
This product ships FREE to Lower 48 States. The Studio 470 base ships by parcel carrier from Holland, Michigan. You will receive a tracking number once the package has shipped. Shipping weight is 47 lbs. All components arrive in a single box.
See our Shipping and Delivery Upgrade Options for complete details about our shipping service levels, methods of shipment, and options for other international locations.
Shipping Time Table
| Product | Order Processing Time | Shipping Time | Total Delivery Time |
| Studio 470 Electric Standing Desk Base | 5 business days | 3–7 business days | 8–10 business days |
