TopView Max Single Monitor Arm

$399.00

When it comes to weight capacity, the TopView Max begins where other monitor arms end. Our heaviest-duty single monitor arm, the TopView Max has an impressive maximum holding capacity of 42 lbs. Ideal for heavier, large-format monitors, all-in-one PCs and iMacs*.† Features the same reliable and smooth gas spring adjustment control as the lighter-duty TopView models, but with an increased dynamic height adjustment range of 13.8″ to accommodate larger monitors. Easy to install, easy to use, and exceptionally reliable, like all our commercial-grade TopView monitor arms, this one comes with a 15 year warranty, meets BIFMA standards and is TAA-compliant.

Color

Free Shipping*

Flexible returns

TopView Max Single Monitor Arm

Free Shipping*

5-Star Service Icon

5 Star Service

ANSI-BIFMA Certified Products that are ready for anything.

Commercial Grade

Detailed Description

Highlights

  • Quiet gas-piston mechanism for ultra-smooth, finger-touch movement
  • Rotating mount allows for portrait and landscape orientation
  • Height adjustment from 9.5″ to 23.3″ (low/high) for a total of 13.8″ dynamic range, needed for those larger monitors
  • 17.6–42 lbs weight capacity
  • Extensive monitor tilt range of +85°/-35°
  • Includes both edge-clamp and grommet mounting hardware
  • Exceeds industry guidelines ANSI/BIFMA x5.5 and CSA CAN/CGSB44.227

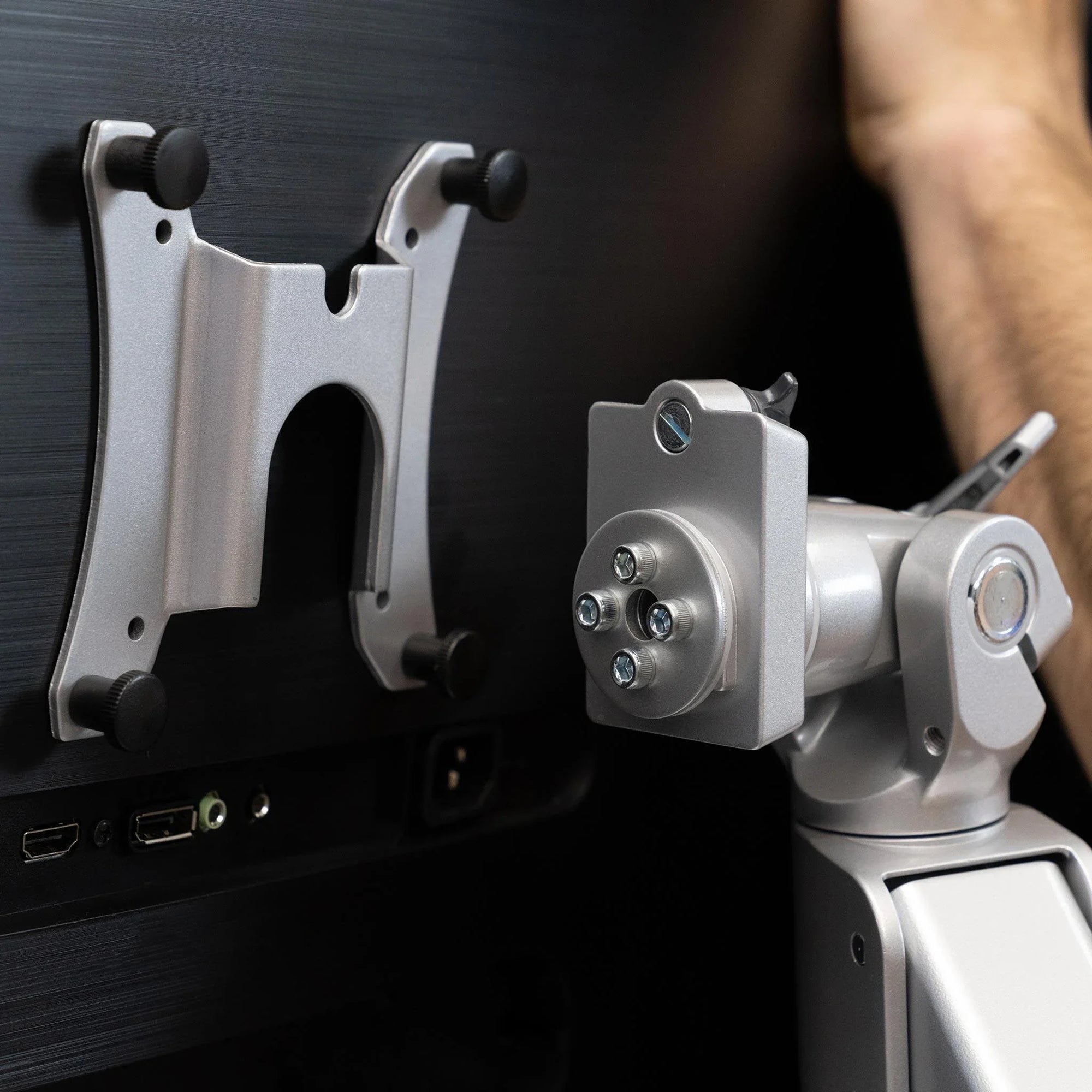

  • VESA quick-mount makes attaching your monitor a breeze (compatible with 99% of LCD monitors). Not sure your monitor will fit? Learn more here or chat with us.
  • Integrated cable management
  • 180° lock-out feature prevents the arm from retracting past the back edge of your workstation when engaged (prevents damage to walls and encroachment into co-worker's space)

* To adapt iMac computers to VESA monitor arms youíll need to obtain the appropriate VESA Adapter Kit from Apple or Amazon.

Not sure which monitor arm is right for you? Check out our comprehensive buying guide.

Dimensions, Drawings & Specifications

Product Specs

TopView Max Single Monitor Arm
Minimum Height 11.5″
Maximum Height 22.75″
Height Range 11.25″
Weight Capacity 17.6–42.0 lbs
VESA Mounting 75mm/100mm Quick Release
Monitor Tilt +85°/-35°
Monitor Rotation 360°
Arm Extension 25″–27.5″
Arm Retraction 5.5″
Certifications Meets or exceeds BIFMA x5.5 and CSA CAN/CGSB44.227 guidelines
Product Weight 18 lbs
Shipping Dimensions 31″ × 8″ × 16″
Mounting Edge clamp and grommet mount
Country of Origin Taiwan (TAA-compliant)

Also note:

  • Recommended Worksurface Depth: 36.0″ deep or less
  • Supported Desk Thickness: 0.6″–3″ (15–76 mm)

Product Diagram

TopView Max Monitor Arm Diagram
Docs & Videos
Warranty & Returns

Warranty & Returns

The TopView Max Monitor Arm comes with a 15-year limited warranty.

We offer a 100-day, 100% Satisfaction Guarantee on this product. If you aren't fully satisfied with your purchase and would like to exchange or return it, please send it back to us and we will give you a full refund. Customer is responsible for shipping costs. No restocking fees apply. See iMovR Terms and Conditions for more details.

Please read our full returns policy here.

Shipping

Shipping

This product ships by UPS or FedEx Ground from Mesa, AZ or Reno, NV. Shipping is included in the price for the Lower 48 States. Lightweight items may alternatively ship by USPS 1st Class Mail to certain geographies. Please allow 5-10 business days for the item to arrive.

See our Shipping and Delivery Upgrade Options for complete details about our shipping service levels, methods of shipment, and options for bulk shipments and international destinations.
